Derale
Electric Fan Controller

Item: 16789

Electric Fan Controller High Amperage Adjustable w/3/8 in. NPT Thread In Probe 35 Amp Per Fan 2-3/8 in. Width 4-5/8 in. Length 1-9/16 in. Height Dual

Sale Price: $139.99

Qty:

Product Description

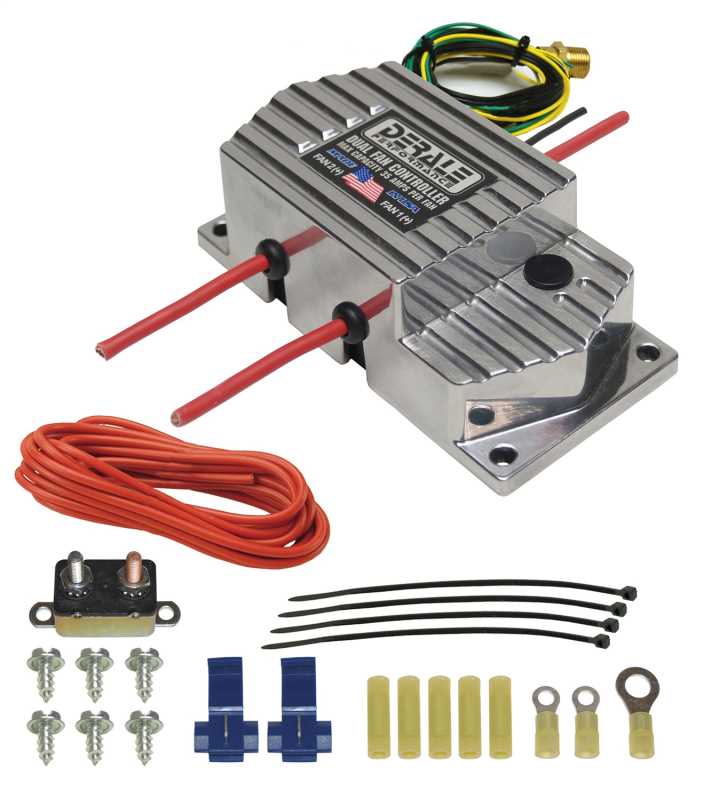

Designed with quality and performance in mind, this High Amperage Dual Fan Controller breaks new ground in the industry of electric fan controllers. 100% USA made, a bulletproof design, 35 amp per fan amperage rating, adjustability from 150°-240°F, and a die cast bright finish aluminum cap, come together to make this dual fan controller stand out from the crowd. It's capable of controlling two separate 35 amp fans at different turn-on temperatures, with only a single probe. The first electric fan will be activated at the temperature set by the user followed by the second electric fan when the temperature becomes 10°F warmer. Each electric fan will turn off at 10°F below its turn-on temperature. Kit comes complete with wiring harness, fusible link, all necessary electrical connectors and 3/8 in. NPT thread-in probe.

Product Features
  • Adjustable Turn-On Temperature From 160 To 240 Degrees Fahrenheit
  • Rated At Maximum 35 Amps Per Fan
  • Activates Fan 1 At Adjusted Temperature
  • Activates Fan 2 At 10 Degrees Fahrenheit Warmer Than Fan 1
  • 15 Degrees Lower Turn-Off Temperature Than Turn-On Temperature
  • Die Cast Aluminum Housing
  • Includes AC Override Circuit
  • Thread-In 3/8 in. NPT Probe
